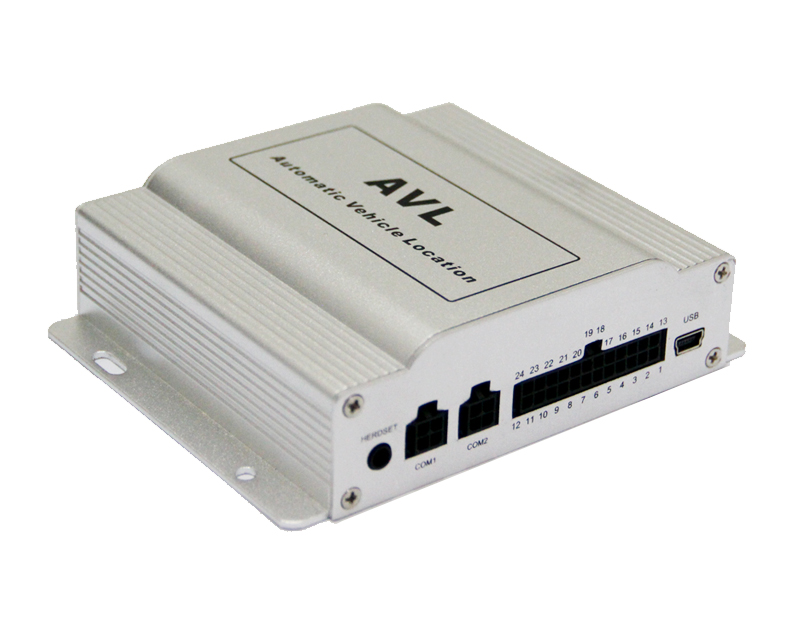

Model No.:TZ-AVL09 Can built-in RFID Reader with 2.4G RFID tag, SD driving record
Applications:
·Vehicle Security/Recover/Anti-hijacking
·Mobile Asset Tracking, Location-based Services
·Fleet Management: car, taxi, bus, truck etc.
·Manage your Assets,Use for School bus, logistics project
Description:
·Support single location and continual tracking
·Over-speed alarm, Low power alarm, Geo-fence alarm
·Tremble alarm, Parking alarm, SOS alarm
·Control car doors close/open, detect the status of engine on/off
·Cut off the engine power gradually and safely when in urgency
·GPRS(TCP/UDP), SMS Support
·When without tremble the device will go into sleep mode
Special Features:
1.Can built-in RFID Reader with 2.4G RFID tag, SD card record (optional)
2.Can connect external RFID Reader, Cameras, Printer (optional)
3.3D accelerometer
4.Support sending GPRS data to IP or DNS
5.Mileage calculation
6.32Mb flash memory
7.Fuel/oil level detection
8.Temperature sensors (optional)
9.Two- way conversation
10.Mobile Google map
11.support ibutton
| Specifications: |
|
| Dimension |
118mm*93mm*31mm |
| N.W for machine |
0.26KG |
| External Voltage |
9V -36V |
| Backup Battery |
850mAh /3.7V |
| GPS Sensitivity |
-163dBm |
| Exterior GSM antenna |
Receive GSM Signal better |
| Exterior GPS antenna |
Receive GPS signal better |
| Exterior RF antenna |
Receive RF signal better |
| Power Consumption |
Active mode<100mA |
| Operating Temperature Range |
-20℃ to +60℃ |
| Humidity |
Up to 75% non-condensing |
| Position Accuracy |
Within 10m for 90% (24hr static, -130dBm) |
| GSM Frequency |
Support Quad-band(850/900/1800/1900 Mhz) |
| GPS Chipset |
Super sensitivity and high accuracy |
| Chipset Cold Start (open sky) |
35sec |
| Chipset Warm Start (open sky) |
35sec |
| Chipset Hot Start (open sky) |
1sec |
| LED |
3 LEDs indicate power, GSM, GPS signal, and trembling status |
| Microphone & speakers |
yes |
| Interfaces |
2 analog input ports, 6 digital input ports(2 positive input, 4 negative input), 3 digital output ports, 4 serial ports and 1 mini USB port |
2.4G Receiver Specifications:
|
Working Frequency
|
2.400 - 2.4835GHz
|
|
Chip Set
|
Nordic
|
|
Operation Mode
|
Active operating Mode
|
|
Distance
|
0-50m
|
|
Modulation
|
GFSK
|
|
Air Data Rate
|
250Kbps
|
|
Operating Temperature
|
-40~85℃
|
|
Storage Temperature
|
-40~125 ℃
|
|
Humidity
|
5% ~ 95% (non-condensing)
|
|
Rx Sensitivity
|
250kbps@-94dBm
|
|
Wireless Transmission
|
GPRS
|
|
Basic ID
|
4 Bytes
|
|
|
