Model No.:3G TZ-AVL301
Applications:
3G fast vehicle information transmission
GPS vehicle tracking vehicle safety, anti hijacking, mobile asset tracking
Location based service fleet management: taxis, buses, motorcycles, trucks, etc
Description:

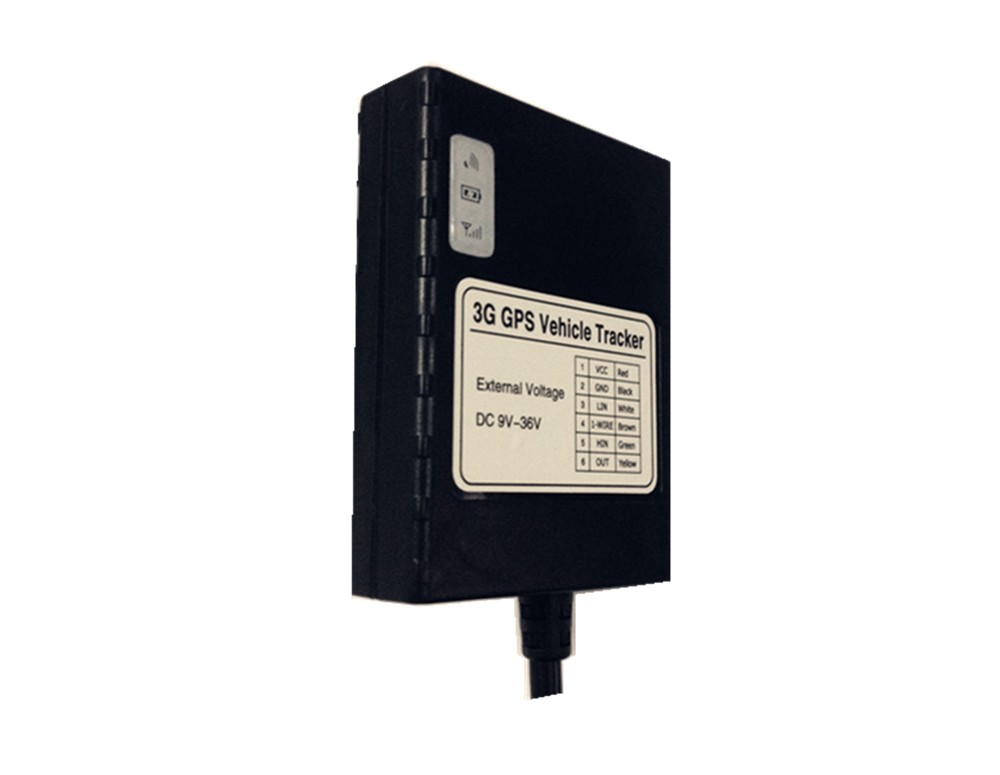

New! 3G GPS Tracker TZ-AVL301
Frequency GSM 850/900/1800 /1900Mhz (Custom),
WCDMA 2100/900Mhz
Support iButton
1 Negative Digital Input
1 Positive Digital Input
2 Digital Output
1 analogue input
1-Wire iButton for driver identification
Waterproof: IP67
Flash memory for logging
Built-in GSM and GPS antenna
Support TCP/UDP protocal
Detect ignition
Mileage calculate
Google map link of location send by SMS
Engine Immobilization
|
Specifications:
|
|
|
Item
|
Specification
|
|
Charging Voltage
|
DC 9-36V
|
|
Dimension
|
87mm*67mm*21mm
|
|
3G module
|
GSM 850/900/1800 /1900Mhz (Custom),WCDMA 900/2100Mhz
|
|
Flash Memory
|
32MBit
|
|
GPS Sensitivity
|
-165dBm
|
|
GPS Frequency
|
L1, 1575.42 MHz
|
|
C/A Code
|
1.023 MHz chip rate
|
|
Channels
|
66 channel all-in-view tracking
|
|
Position Accuracy
|
3 meters, 2D RMS
|
|
Velocity Accuracy
|
0.1 m/s
|
|
Time Accuracy
|
1 us synchronized to GPS time
|
|
Default datum
|
WGS-84
|
|
Reacquisition
|
0.1 sec., average
|
|
Hot start
|
2 sec., average
|
|
Cold start
|
33 sec., average
|
|
Altitude Limit
|
18,000 meters (60,000 feet)max
|
|
Velocity Limit
|
515meters/second(1000knots)max
|
|
Jerk Limit
|
20 m/sec
|
|
Operating temperature
|
-20°C to 60°C
|
|
Humidity
|
5% to 95% Non-condensing
|
|
Voltage
|
Rechargeable 320mAh battery(3.7V)
|
|
Work time
|
7 hours in normal mode
|
|
|
